How AEM Clientlibs works

Here we will briefly talk about how clientlibs works in AEM and how we can create clientlibs.

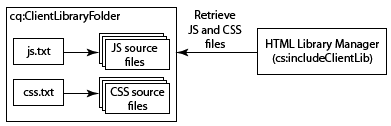

Creating cq:ClientLibraryFolder


Clientlibs are generated and stored at /var/clientlibs by default, cq:ClientLibraryFolder nodes can be placed anywhere within the /apps , /libs and /etc subtrees of the repository


Repository node of type cq:ClientLibraryFolder:


[cq:ClientLibraryFolder] > sling:Folder

- dependencies (string) multiple

- categories (string) multiple

- embed (string) multiple

- channels (string) multiple


The properties of the cq:ClientLibraryFolder are configured as follows:

  • Categories[] : Identifies the categories into which the set of JS and/or CSS files within this cq:ClientLibraryFolder fall.

  • dependencies[] : This is a list of other client library categories on which this library folder depends. For example, given two cq:ClientLibraryFolder nodes F and G , if a file in F requires another file in G in order to function properly, then at least one of the categories of G should be among the dependencies of F .

  • embed : Used to embed code from other libraries. If node F embeds nodes G and H, the resulting HTML will be a concentration of content from nodes G and H.

  • allowProxy : If a client library is located under /apps , this property allows access to it via proxy servlet.


Referencing Client-Side Libraries


Using HTL


In HTL, client libraries are loaded through a helper template provided by AEM, which can be accessed through data-sly-use . Three templates are available in this file, which can be called through data-sly-call :

  • css - Loads only the CSS files of the referenced client libraries.

  • js - Loads only the JavaScript files.

  • all - Loads all the files(both CSS and JavaScript).


<sly data-sly-use.clientlib="/libs/granite/sightly/templates/clientlib.html"

data-sly-call="${clientlib.all @ categories=['myCategory1', 'myCategory2']}"/>


Using JSP


Add a ui:includeClientLib tag to your JSP code to add a link to client libraries in the generated HTML page.


<%@taglib prefix="ui" uri="https://www.adobe.com/taglibs/granite/ui/1.0" %> <ui:includeClientLib categories="<%= categories %>" />


The following code in a JSP file references the jQuery libraries:

<ui:includeClientLib categories="cq.jquery"/>


The generated HTML page contains the following code:

<script type="text/javascript" src="/etc/clientlibs/foundation/jquery.js"></script>


Client-Side Libraries Global Configuration


Clientlibs settings can be found in in system/console/configMgr in Adobe Granite HTML Library Manager.


Adobe Granite HTML Library Manager Configure this to control the handling of client libraries (css or js); including, for example, how the underlying structure is seen.

For production instances:

  • enable Minify (to remove CRLF and whitespace characters).

  • enable Gzip (to allow files to be gzipped and accessed with one request).

  • disable Debug

  • disable Timing

For JS development (especially when firebugging/debugging):

  • disable Minify

  • enable Debug to separate the files for debugging and use with firebug.

  • enable Timing in the case of interest in timing.

  • enable Debug console to see JS console log messages.

Via mod_expires / mod_deflate and the use of cache-busting you can cache the css/js files on the browser to increase overall performance of your pages. All of this will happen in combination with the dispatcher.
